Walksnail Avatar HD Mini 1S Kit
৳16,800

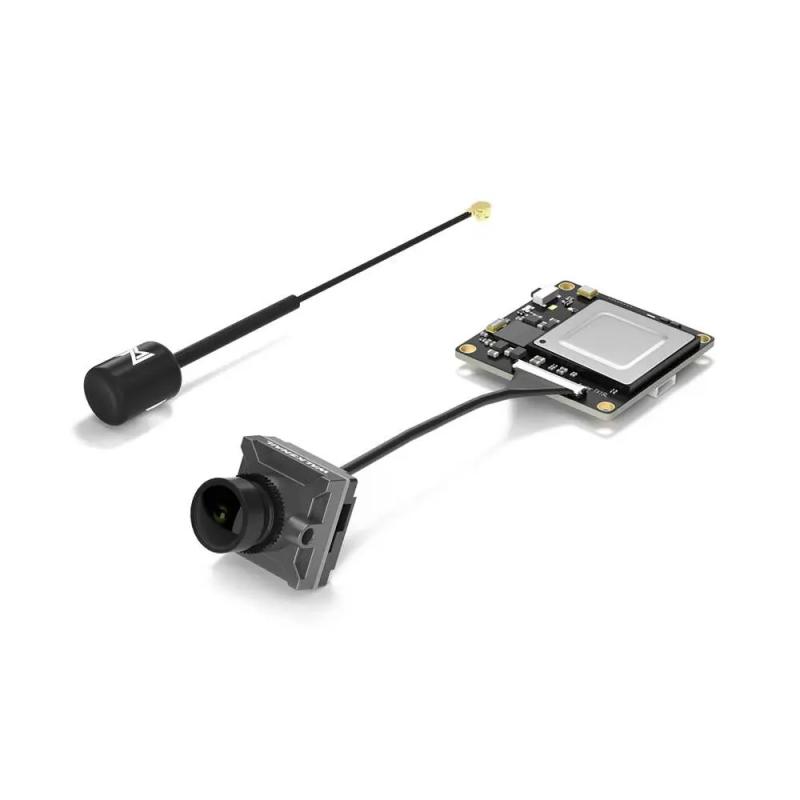

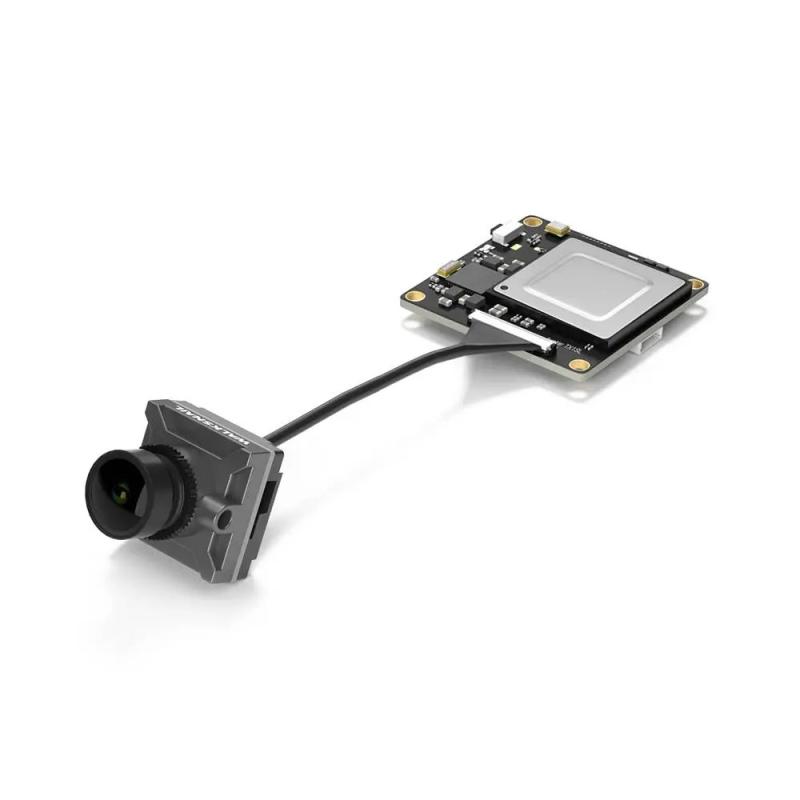

The Walksnail Avatar HD Mini 1S Kit is a compact and lightweight digital FPV system designed for micro drones and 1S builds. It features a nano-sized camera and a mini VTX module with a heatsink, delivering high-definition video transmission with low latency. Compatible with HD goggles such as the Walksnail Avatar and Fat Shark HD Dominator, this kit offers an immersive FPV experience with onboard DVR and a switchable aspect ratio.
| Feature | Specification |
|---|---|
| Camera Model | Avatar Nano Camera |
| Camera Sensor | 1/2.7" CMOS sensor |
| Camera Resolution | 1080p @ 60fps, 720p @ 120fps, 720p @ 60fps |
| Camera Field of View | 170° |
| Camera Lens | 2.1mm |
| Camera Aperture | f/2.0 |
| Camera Weight | 3.5g |
| Camera Dimensions | 14x14x17mm |
| VTX Model | Avatar Mini 1S VTX Module with Heatsink |
| VTX Frequency Range | 5.725–5.850 GHz |
| VTX Channels | 8 channels |
| VTX Transmit Power | FCC: <25.5dBm, CE: <14dBm, SRRC: <20dBm, MIC: <25dBm |
| VTX Weight | 5.1g |
| VTX Dimensions | 30x30x6.5mm |
| VTX Storage | 8GB internal storage |
| VTX Latency | Approximately 22ms |
| VTX Power Input | 3.1V–5V |
| Antenna Type | Linear dipole antenna (LHCP) |
| Antenna Gain | 1.6 dBi |
| Antenna Impedance | 50Ω |
| Operating Temperature | -20°C to +40°C |
| Weight (Total Kit) | 10g |
