Hantek 2D72 2-Channels 70MHz 250MSa/s 3in1 Digital Oscilloscope DSO + Multimeter + Signal Generator
৳21,570 ৳25,670

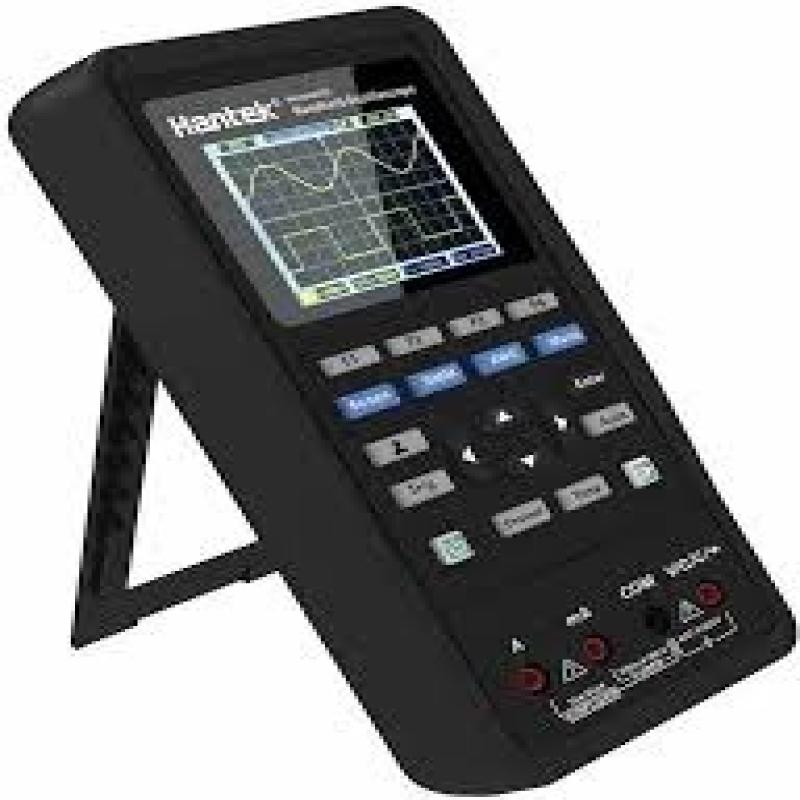

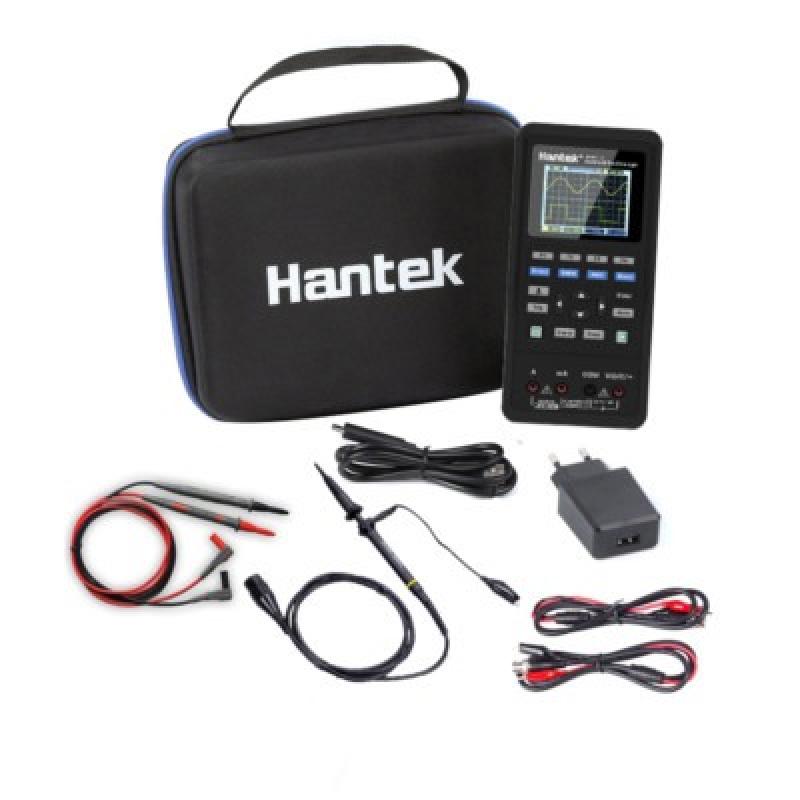

The Hantek 2D72 is a versatile and compact 3-in-1 handheld measurement tool, combining a digital oscilloscope, waveform generator, and digital multimeter into a single device. Designed for engineers, technicians, and hobbyists, it offers portability and functionality, making it suitable for fieldwork, educational purposes, and laboratory use.
| Feature | Specification |
|---|---|
| Model | Hantek 2D72 |
| Oscilloscope Bandwidth | 70 MHz |
| Channels | 2 (Dual Channel) |
| Sample Rate | 250 MSa/s (Single Channel), 125 MSa/s (Dual Channel) |
| Memory Depth | 6k (Single Channel), 3k per Channel (Dual Channel) |
| Vertical Resolution | 8 bits |
| Vertical Range | 10 mV/div to 10 V/div |
| Waveform Generator | Sine, Square, Triangle, Trapezoidal, and other waveforms up to 25 MHz |
| Multimeter Functions | Voltage (AC/DC), Current (AC/DC), Resistance, Diode, Continuity, Capacitance |
| Display | 2.8-inch Color TFT LCD |
| Battery | 18650 Replaceable Lithium Battery, 5V/2A USB Type-C Charging Interface |
| Charging Time | Approximately 2 hours |
| Continuous Usage | Up to 1 full day after a full charge |
| Standby Time | Over 2 months |
| Dimensions | 7.8 x 1.6 x 4 inches |
| Weight | 14.4 ounces (approximately 408 grams) |
