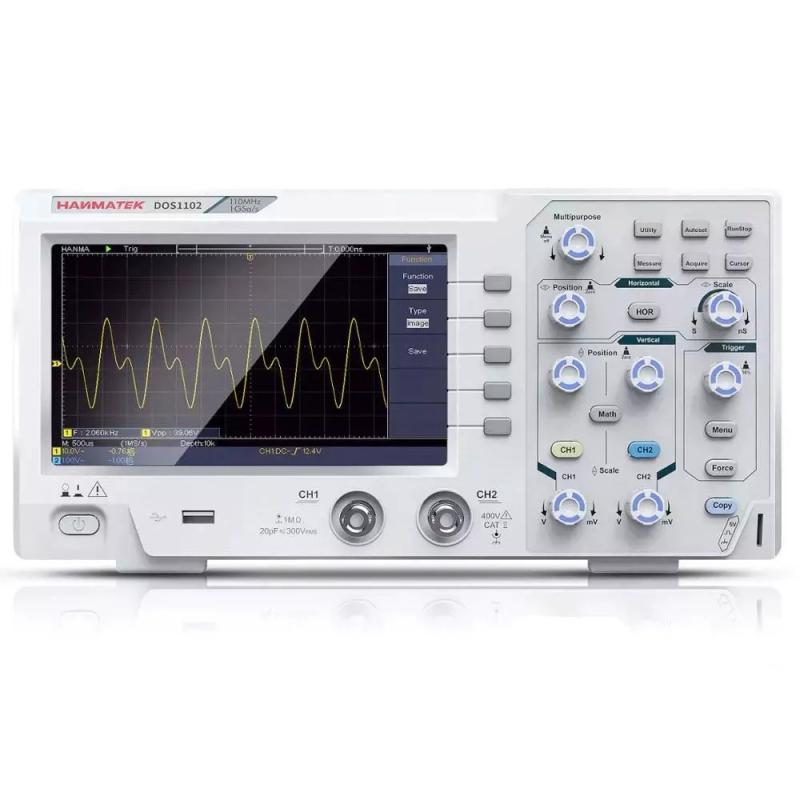

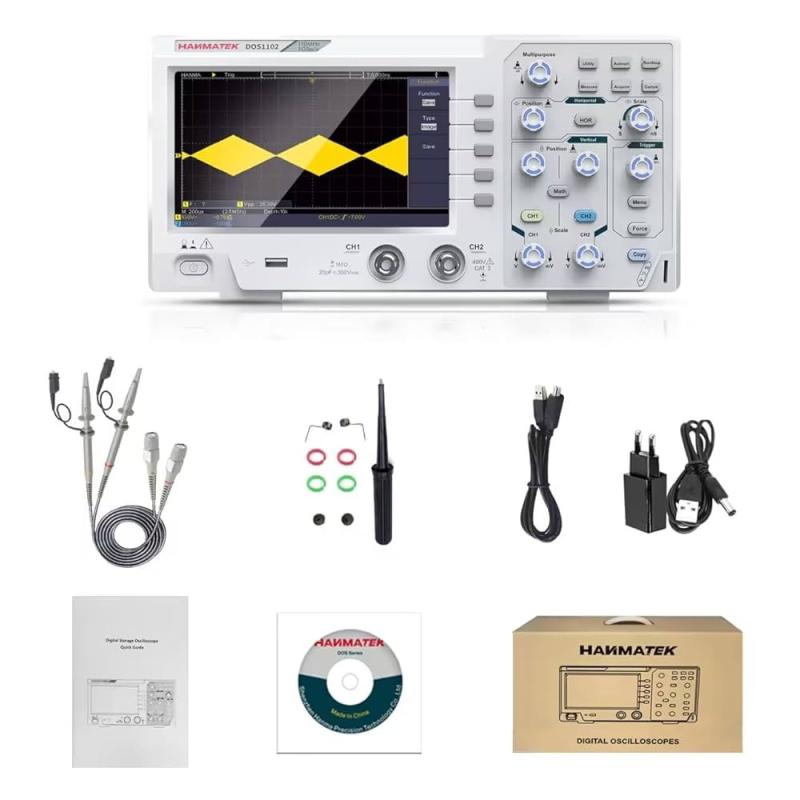

HANMATEK DOS1102 110mhz 2-Channels 1Gs/S Digital Storage Oscilloscope DSO
৳24,500 ৳28,850
The Hanmatek DOS1102 is a versatile 2-channel digital storage oscilloscope designed for professionals and enthusiasts in electronics, automotive diagnostics, and educational settings. With a bandwidth of 110 MHz and a real-time sampling rate of 1 GSa/s, it offers precise waveform analysis capabilities. The oscilloscope features a user-friendly 7-inch TFT LCD display with a resolution of 800x480 pixels, ensuring clear and detailed waveform visualization. Additionally, it includes a built-in 6-digit hardware frequency counter and supports USB connectivity for data storage and remote control.
| Feature | Specification |
|---|---|
| Model | DOS1102 |
| Bandwidth | 110 MHz |
| Channels | 2 (independent control) |
| Sample Rate (Real-Time) | 1 GSa/s (single channel), 500 MSa/s (dual channel) |
| Sample Rate (Equivalent) | 1 GSa/s (single channel), 500 MSa/s (dual channel) |
| Memory Depth | ≥10,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Range | 20 mV/div to 5 V/div |
| Display | 7-inch TFT LCD, 800x480 resolution |
| Time Base Range | 2 ns/div to 1000 s/div |
| Frequency Counter | Built-in 6-digit, 2 Hz to 20 MHz |
| Waveform Storage | Supports up to 16 stored waveforms |
| Connectivity | USB Device and Host ports |
| Power Supply | DC Power (100–240V AC input via adapter) |
| Dimensions | 301 x 152 x 70 mm |
| Weight | 1.1 kg |
