GEPRC GEP-F722-45A AIO V2
৳18,367

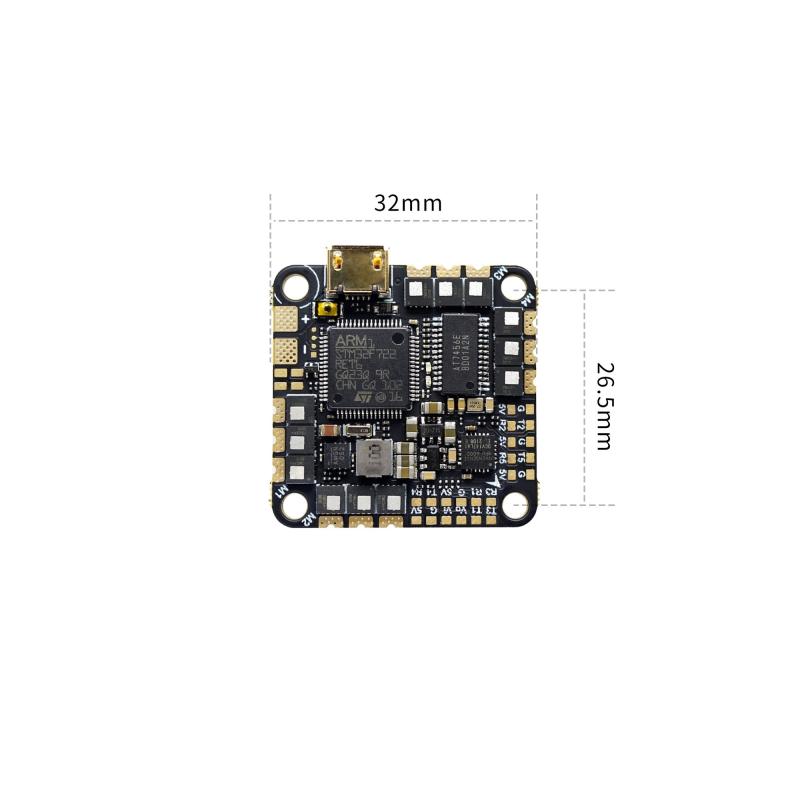

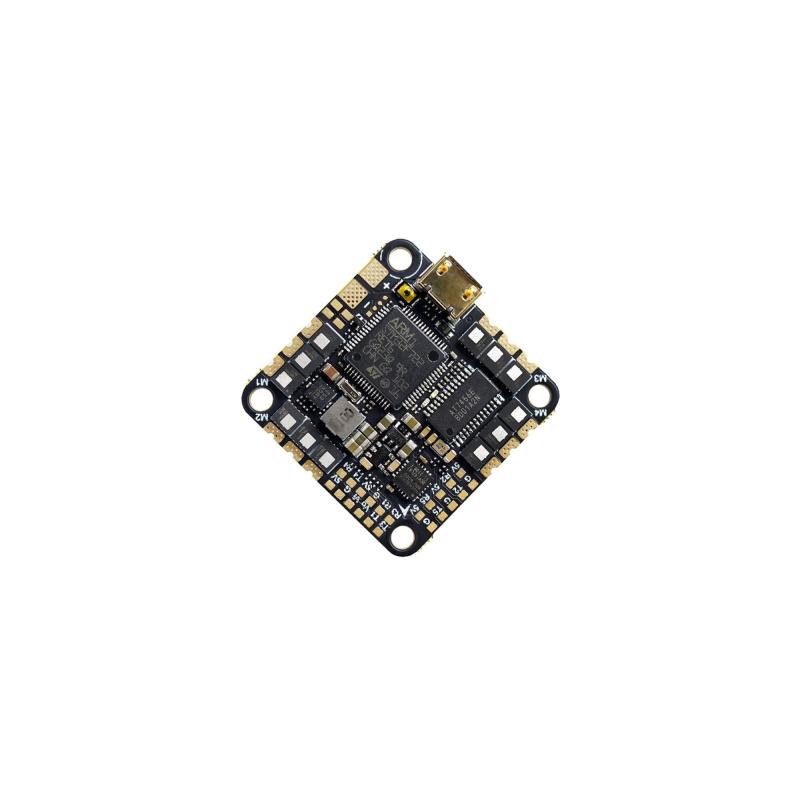

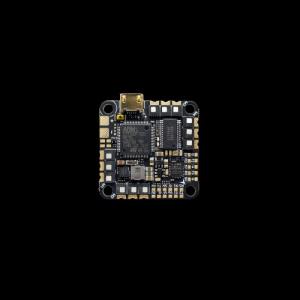

The GEPRC GEP-F722-45A AIO V2 is a high-performance all-in-one flight controller and ESC system designed for powerful FPV drone builds. Built around the STM32F722 microcontroller and featuring the ICM42688 gyro, this flight controller offers seamless integration of flight control and power distribution, making it ideal for both racing and freestyle drones.
| Feature | Details |
|---|---|
| MCU | STM32F722 |
| IMU | ICM42688 (SPI) |
| ESC | BLHeli_S 45A (continuous), 55A (burst) |
| Input Voltage | 2–6S LiPo (7–26V) |
| BEC Output | 5V @ 1A |
| UART Ports | 5 (supports GPS, telemetry, etc.) |
| OSD | Betaflight OSD with AT7456Ev |
| USB Port | Micro USB |
| Mounting Holes | 25.5×25.5 mm (M2) |
| Dimensions | 25.5×25.5 mm |
| Weight | 8.8g |
| Firmware Support | Betaflight, INAV, ArduPilot |
Key Features
High-Performance MCU: Equipped with the STM32F722 microcontroller for enhanced processing power.
Advanced Gyro: Features the ICM42688 gyro for improved flight stability.
Powerful ESC: BLHeli_S 45A ESC with 55A burst capability supports 2–6S LiPo batteries.
Integrated OSD: Onboard Betaflight OSD with AT7456Ev for real-time flight data display.
Multiple UARTs: Five UART ports for connecting various external devices.
Compact Design: Lightweight 8.8g design with 25.5×25.5 mm mounting holes suitable for most frames.
Plug-and-Play DJI Connector: 6-pin connector for easy integration with DJI Air Unit modules.
