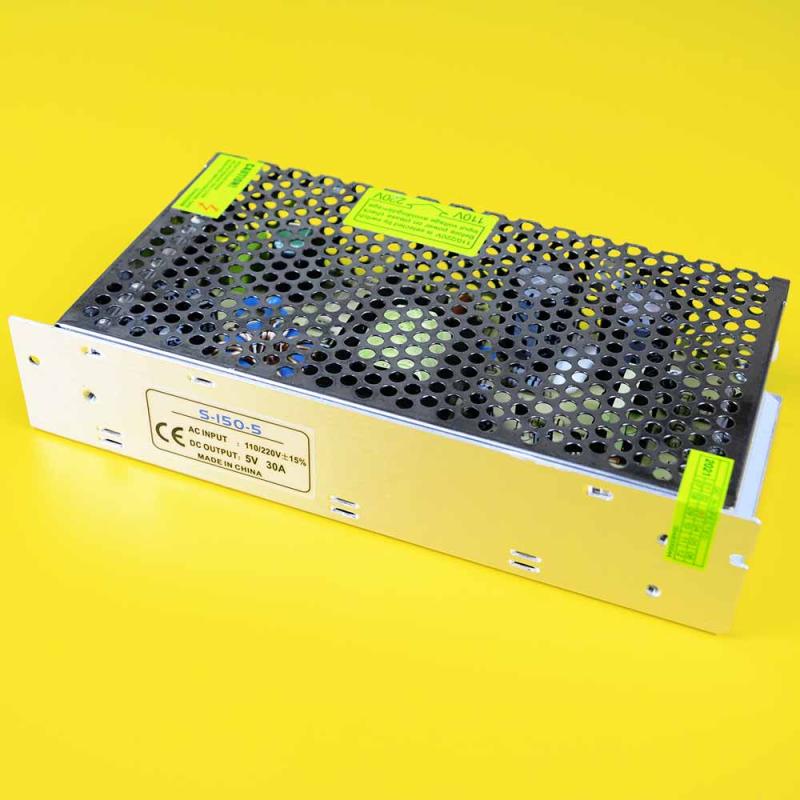

This power supply unit efficiently converts AC voltage to DC and is designed for versatility across a wide range of applications. With its adjustable output voltage, durable construction, and ability to maintain stable performance under varying loads, it provides dependable operation in diverse conditions.

Key Features

• Input Voltage: 224.2VAC
• Adjustable Output Voltage: 3.17VDC - 6.63VDC (measured by CD800a)
• Durable Stainless Steel Body
• Load Tested: Performance remains consistent up to 22A
• Compact Design and Lightweight
• Voltage Regulation via Potentiometer

• Technical Specifications

  Parameter	Details
  Input Voltage	224.2VAC
  Output Voltage	3.17VDC - 6.63VDC (Measured By CD800a)
  Voltage Tuning	Potentiometer for adjusting voltage from 3.17VDC to 6.63VDC
  Set Voltage (5V)	Load Characteristics: Load 1A: Voltage dropped to 4.94V Load 2A: Voltage dropped to 4.89V Load 3A: Voltage dropped to 4.83V Load 4A: Voltage dropped to 4.78V Load 5A: Voltage dropped to 4.72V Load 7A: Voltage dropped to 4.59V Load 9A: Voltage dropped to 4.47V Load 10A: Voltage dropped to 4.41V Load 15A: Voltage dropped to 4.12V Load 20A: Voltage dropped to 3.78V Load 22A: Voltage dropped to 3.61V (Max Amp Selection)
  Body Labeling	Top Part: AC110V to 220V Selector Marking Right Part: JCPOWER JC-150-5 DC Output: +24V 10A Other Labels: Power Vision, QULITY FAST

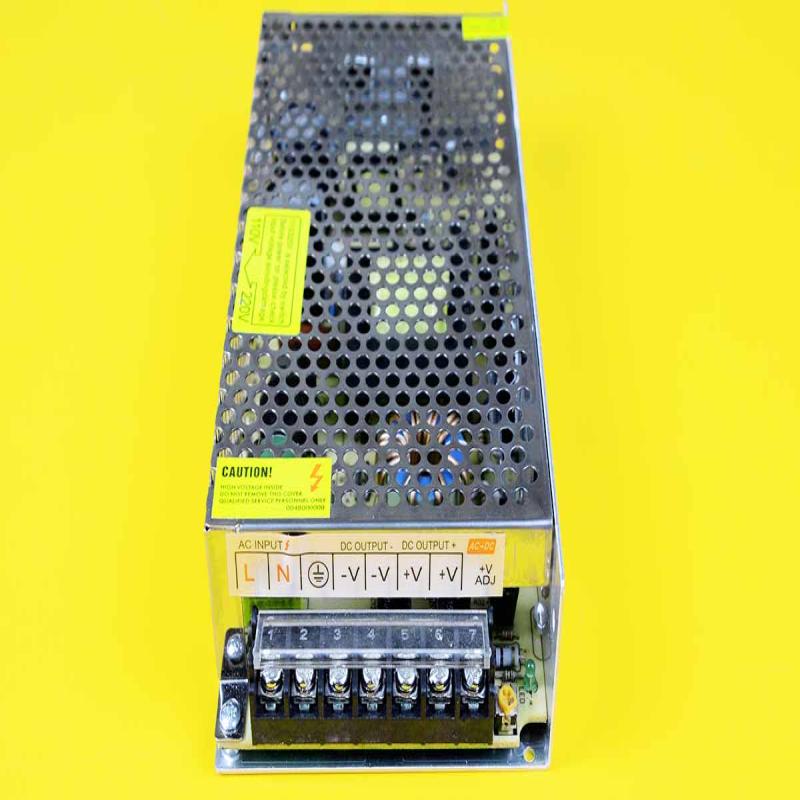

  I/O Terminal Configuration	3 Input Terminals: Phase, Neutral, Ground 4 Output Terminals: 2 Positive (+), 2 Negative (-)
  Dimensions	Width: 9.7cm Length: 19.8cm Height: 4cm
  Weight	495g
  Color	Silver
  Body Material	Stainless Steel
